Run control logic on a machine

This guide shows you how to write a module with control logic for a machine:

  1. Create a module with a template for the control logic
  2. Program the control logic using the DoCommand method
  3. Test the control logic locally
  4. Run control logic on the module automatically with one or more jobs

For microcontrollers, see Micro-RDK modules and Over-the-air firmware updates instead.

Prerequisites

You must have one machine running viam-server.

If your control logic depends on any hardware or software resources to function, you must configure those hardware and software resources.

Create a module with a generic component template

Install the Viam CLI. You will use the CLI to generate the template you will use to write your control logic:

  1. Install the CLI.

    You must have the Viam CLI installed to generate and upload modules:

    To download the Viam CLI on a macOS computer, install brew and run the following commands:

       brew tap viamrobotics/brews
   brew install viam

    To download the Viam CLI on a Linux computer with the aarch64 architecture, run the following commands:

       sudo curl -o /usr/local/bin/viam https://storage.googleapis.com/packages.viam.com/apps/viam-cli/viam-cli-stable-linux-arm64
   sudo chmod a+rx /usr/local/bin/viam

    To download the Viam CLI on a Linux computer with the amd64 (Intel x86_64) architecture, run the following commands:

       sudo curl -o /usr/local/bin/viam https://storage.googleapis.com/packages.viam.com/apps/viam-cli/viam-cli-stable-linux-amd64
   sudo chmod a+rx /usr/local/bin/viam

    You can also install the Viam CLI using brew on Linux amd64 (Intel x86_64):

       brew tap viamrobotics/brews
   brew install viam

    Download the binary and run it directly to use the Viam CLI on a Windows computer.

    If you have Go installed, you can build the Viam CLI directly from source using the go install command:

       go install go.viam.com/rdk/cli/viam@latest

    To confirm viam is installed and ready to use, issue the viam command from your terminal. If you see help instructions, everything is correctly installed. If you do not see help instructions, add your local go/bin/* directory to your PATH variable. If you use bash as your shell, you can use the following command:

       echo 'export PATH="$HOME/go/bin:$PATH"' >> ~/.bashrc

    For more information see install the Viam CLI.

  2. Run the module generate command in your terminal:

    viam module generate --resource-subtype=generic-component

  3. Follow the prompts, selecting the following options:

    • Module name: Your choice, for example control-logic

    • Language: Your choice

    • Visibility: Private

    • Namespace/Organization ID: Navigate to your organization settings through the menu in upper right corner of the page. Find the Public namespace and copy that string. In the example snippets below, the namespace is naomi.

    • Resource to be added to the module: Generic Component.

      You can use any resource type. The choice of resource type affects the API methods that you must implement. You can choose any component API or service API.

      If you plan to use the control logic mostly on one component or service, choose the same component or service and implement the control logic in the available API methods for that resource. If no resource API fits, use the Generic type and implement the logic in the DoCommand method. All resource APIs contain the generic DoCommand method to implement any functionality that does not fit into other API methods. DoCommand is often used to implement control logic, as you can pass commands as arbitrary JSON objects, such as {“action”: “start”}.

      For simplicity, this guide uses the generic component which only supports the DoCommand method.

    • Model name: Your choice, for example control-logic

    • Enable cloud build: Choose Yes if you are using GitHub or want to use cloud build.

    • Register module: Yes

  4. Press the Enter key and the generator will create a folder for your control logic component.

Program control logic in module

Open the python file in the src/models/ folder to add your control logic to it.

The following example shows how you might implement logic that toggles an LED on and off.

Any resources that you wish to access from your control logic need to be identified and instantiated. To keep your code loosely coupled, we recommend passing the resource names in the configuration attributes of the control logic. We must modify the validate_config method to ensure all required values are passed in correctly and then instantiate the resource in the reconfigure method.

1

Pass resources in configuration.

The validate_config method serves two purposes:

  • To ensure the expected fields are in the config. The validate_config method is called whenever the module is started or a configuration change occurs.
  • To return a list of the names of all the required dependencies. viam-server waits until all returned dependencies are available before starting this component.
    @classmethod
    def validate_config(
        cls, config: ComponentConfig
    ) -> Tuple[Sequence[str], Sequence[str]]:
        fields = config.attributes.fields
        if "board_name" not in fields:
            raise Exception("missing required board_name attribute")
        elif not fields["board_name"].HasField("string_value"):
            raise Exception("board_name must be a string")
        board_name = fields["board_name"].string_value
        if not board_name:
            raise ValueError("board_name cannot be empty")
        if "pin" not in fields:
            raise Exception("missing required pin attribute")
        elif not fields["pin"].HasField("string_value"):
            raise Exception("pin must be a string")
        pin = fields["pin"].string_value
        if not pin:
            raise ValueError("pin cannot be empty")
        # Return the board as a required dependency (just the name, not the full ResourceName)
        req_deps = [board_name]
        return req_deps, []
2

Set up instance parameters

When your new model gets added to your machine, its new() method gets called. You can use it to store any instance variables.

viam-server passes the required dependencies when the control logic resource is reconfiguring. From these dependencies you can get the board and store it in an instance variable.

    @classmethod
    def new(
        cls, config: ComponentConfig, dependencies: Mapping[ResourceName, ResourceBase]
    ) -> Self:
        toggler = super().new(config, dependencies)
        toggler.board_name = config.attributes.fields["board_name"].string_value
        board_resource_name = Board.get_resource_name(toggler.board_name)
        board_resource = dependencies[board_resource_name]
        toggler.board = cast(Board, board_resource)
        toggler.pin = config.attributes.fields["pin"].string_value
        return toggler

Add the following imports at the top of src/models/control_logic.py:

from typing import cast
from viam.components.board import Board

The new method gets called whenever the control logic module starts or when a configuration change occurs for the resource itself.

If this is a problem, consider writing state to a file on disk and adding logic to handle subsequent calls to the reconfigure method gracefully.

3

Write the control logic.

Update your logic in the do_command method to use the board:

    async def do_command(
        self,
        command: Mapping[str, ValueTypes],
        *,
        timeout: Optional[float] = None,
        **kwargs
    ) -> Mapping[str, ValueTypes]:
        result = {key: False for key in command.keys()}
        for name, args in command.items():
            if name == "action" and args == "toggle":
                pin = await self.board.gpio_pin_by_name(name=self.pin)
                high = await pin.get()
                if high:
                    await pin.set(high=False)
                else:
                    await pin.set(high=True)
                result[name] = True
        return result
Click to view the entire control logic code

This is the code for src/models/control_logic.py:

from typing import (Any, ClassVar, Dict, Final, List, Mapping, Optional,
                    Sequence, Tuple)

from typing_extensions import Self
from viam.components.generic import *
from viam.proto.app.robot import ComponentConfig
from viam.proto.common import Geometry, ResourceName
from viam.resource.base import ResourceBase
from viam.resource.easy_resource import EasyResource
from viam.resource.types import Model, ModelFamily
from viam.utils import ValueTypes

from typing import cast
from viam.components.board import Board


class Toggler(Generic, EasyResource):
    # To enable debug-level logging, either run viam-server with the --debug option,
    # or configure your resource/machine to display debug logs.
    MODEL: ClassVar[Model] = Model(ModelFamily("naomi", "led-toggle"), "toggler")

    @classmethod
    def new(
        cls, config: ComponentConfig, dependencies: Mapping[ResourceName, ResourceBase]
    ) -> Self:
        """This method creates a new instance of this Generic component.
        The default implementation sets the name from the `config` parameter.

        Args:
            config (ComponentConfig): The configuration for this resource
            dependencies (Mapping[ResourceName, ResourceBase]): The dependencies (both required and optional)

        Returns:
            Self: The resource
        """
        toggler = super().new(config, dependencies)
        toggler.board_name = config.attributes.fields["board_name"].string_value
        board_resource_name = Board.get_resource_name(toggler.board_name)
        board_resource = dependencies[board_resource_name]
        toggler.board = cast(Board, board_resource)
        toggler.pin = config.attributes.fields["pin"].string_value
        return toggler

    @classmethod
    def validate_config(
        cls, config: ComponentConfig
    ) -> Tuple[Sequence[str], Sequence[str]]:
        fields = config.attributes.fields
        if "board_name" not in fields:
            raise Exception("missing required board_name attribute")
        elif not fields["board_name"].HasField("string_value"):
            raise Exception("board_name must be a string")
        board_name = fields["board_name"].string_value
        if not board_name:
            raise ValueError("board_name cannot be empty")
        if "pin" not in fields:
            raise Exception("missing required pin attribute")
        elif not fields["pin"].HasField("string_value"):
            raise Exception("pin must be a string")
        pin = fields["pin"].string_value
        if not pin:
            raise ValueError("pin cannot be empty")
        # Return the board as a required dependency (just the name, not the full ResourceName)
        req_deps = [board_name]
        return req_deps, []

    async def do_command(
        self,
        command: Mapping[str, ValueTypes],
        *,
        timeout: Optional[float] = None,
        **kwargs
    ) -> Mapping[str, ValueTypes]:
        result = {key: False for key in command.keys()}
        for name, args in command.items():
            if name == "action" and args == "toggle":
                pin = await self.board.gpio_pin_by_name(name=self.pin)
                high = await pin.get()
                if high:
                    await pin.set(high=False)
                else:
                    await pin.set(high=True)
                result[name] = True
        return result

    async def get_geometries(
        self, *, extra: Optional[Dict[str, Any]] = None, timeout: Optional[float] = None
    ) -> Sequence[Geometry]:
        self.logger.error("`get_geometries` is not implemented")
        raise NotImplementedError()

For a complete tutorial, see Tutorial: Desk Safari. For more examples, check the Viam registry

For more information on accessing components and services, see Module dependencies.

Test your module locally

You can test your module locally before uploading it to the registry.

Add module to machine

To get your module onto your machine, hot reloading builds and packages it and then uses the shell service to copy it to the machine for testing. If your files are already on the machine, you can add the module manually instead.

Run the following command to build the module and add it to your machine:

viam module reload-local --cloud-config /path/to/viam.json

viam module reload --part-id 123abc45-1234-432c-aabc-z1y111x23a00

For more information, see the viam module documentation.

Reload troubleshooting

  • Error: Could not connect to machine part: context deadline exceeded; context deadline exceeded; mDNS query failed to find a candidate

    Try specifying the --part-id, which you can find by clicking the Live indicator on your machine’s page and clicking Part ID.

  • Error: Rpc error: code = Unknown desc = stat /root/.viam/packages-local: no such file or directory

    Try specifying the --home directory, for example /Users/yourname/ on macOS.

  • Error: Error while refreshing token, logging out. Please log in again

    Run viam login to reauthenticate the CLI.

Try using a different command

If you are still having problems with the reload command, you can use a different, slower method of rebuilding and then restarting the module. Run the following command to rebuild your module:

viam module build local

Then restart it on your machine’s CONFIGURE tab. In the upper-right corner of the module’s card, click the … menu, then click Restart.

Module menu.

Navigate to your machine’s CONFIGURE page.

Click the + button, select Local module, then again select Local module.

Enter the path to the automatically-generated run.sh script. Click Create. For local modules, viam-server uses this path to start the module.

Example module: For the control-logic module, the path should resemble /home/yourname/control-logic/run.sh on Linux, or /Users/yourname/control-logic/run.sh on macOS.

Save the config.

Add local model

1

Configure your resource as a local component or service.

Click +, click Local module, then click Local component or Local service depending on your resource type and fill in the fields as follows:

  • model namespace triplet: <namespace>:control-logic:control-logic, you can see the full triplet in the module’s meta.json file
  • type: <resource-type>
  • name: resource-1

If you use other machine resources, add their configuration values in the resource’s configuration field and updating the names as needed:

{
  "board_name": "board-1",
  "pin": "13"
}

Save the config.

Use the TEST panel to test the resource.

If you are encountering errors, check the LOGS tab for more information.

2

Iterate.

If you make changes to your module code, you must restart your module for the changes to take effect. Click on the … menu near the module and select Restart.

Test the control logic

You can use the DoCommand method from the web UI or from the Viam SDKs:

On the CONTROL or the CONFIGURE tab, use the DoCommand panel:

  1. Copy and paste the following command input:

    {
  "action": "toggle"
}

  2. Click Execute to call DoCommand() with the command input on your machine.

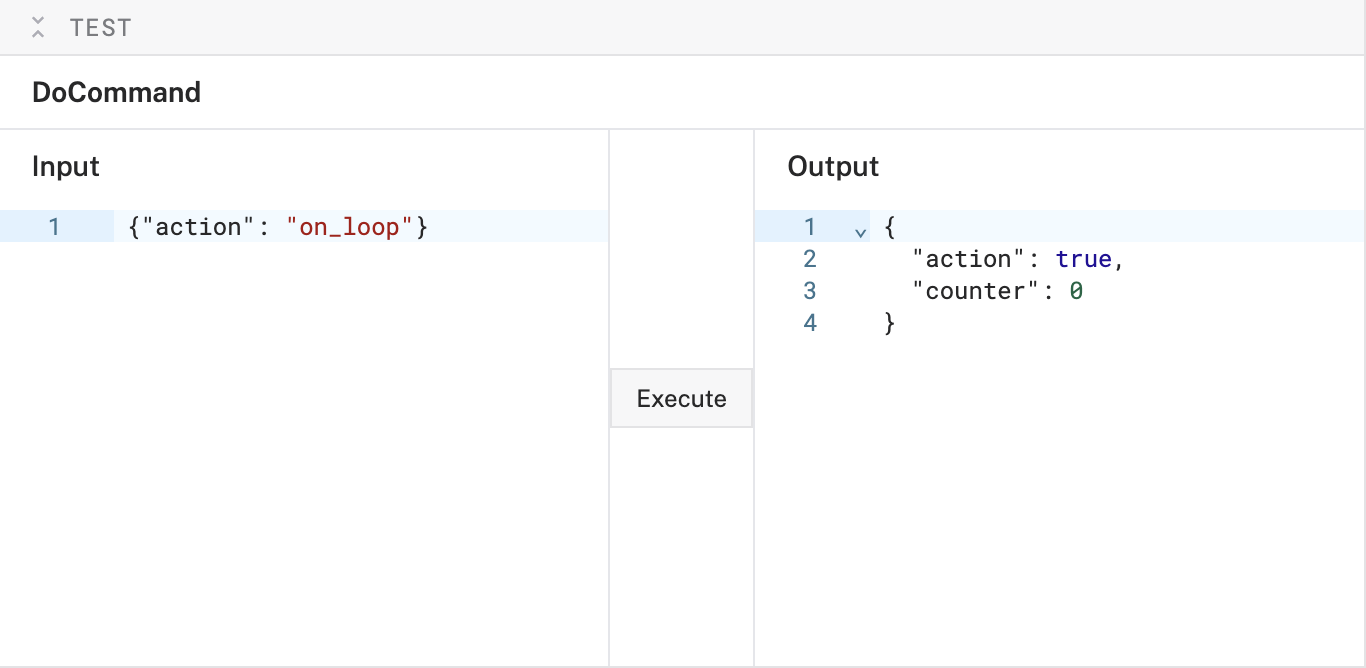

    The generic component in the test panel.

You can run your control logic with the DoCommand() method from the Python SDK:

await control_logic.do_command({"action": "toggle"})

These steps manually test the control logic, to run the logic automatically, see Run control logic automatically with jobs.

Run control logic automatically with jobs

To run control logic, use a job which calls the DoCommand method periodically.

  1. Click the + icon next to your machine part in the left-hand menu and select Job.
  2. You can use the default name, job-1, and click Create.
  3. In the job panel, set the Schedule to Interval and enter 5 seconds.
  4. Then configure the job to use the control logic resource using the name you gave it when you deployed it.
  5. Select the DoCommand Method and specify the Command { "action": "toggle" }.
  6. Click Save.

For testing purposes, you can also send this command manually.

Next steps

Once you have thoroughly tested your module, continue to package and deploy it.

Previous

Support hardware

Next

Package and deploy
